In industrial environments such as petrochemical refineries, steel mills, and power plants, process conditions are rarely ideal. Dust, steam, and material buildup on vessel walls are common, often causing traditional level measurement devices to produce unreliable data, signal drift, or complete system failure. For process engineers and plant managers, the challenge is not just taking a measurement; it is maintaining accuracy despite the environment.
Putting It to the Test: Penetration Capability
To verify how 80GHz technology handles these obstructions, we conducted a practical evaluation. The goal was to see if the radar signal could ”ignore” barriers and lock onto the true target.
The Test Setup:
Device: RETTAR 80GHz Radar Level Meter.
Target: A metal box (simulating the surface of real material).
Interference: A blue plastic box (simulating wall buildup or internal obstacles).
The Process:

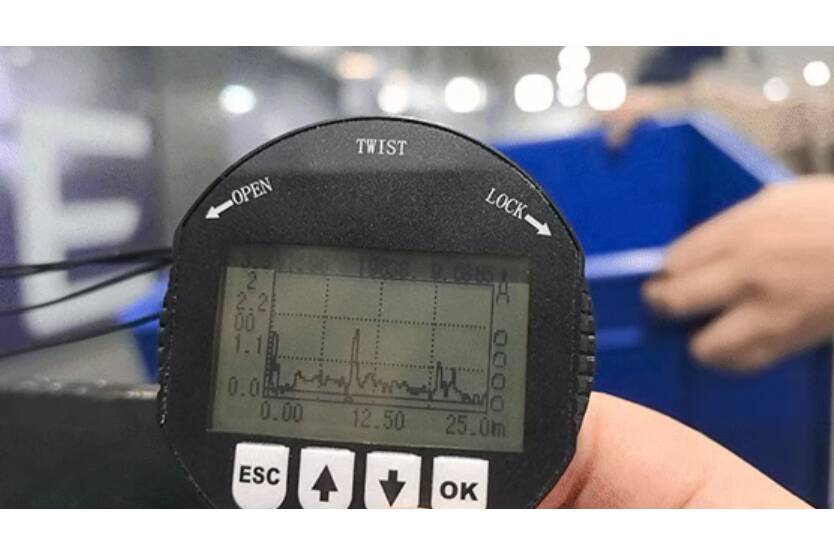

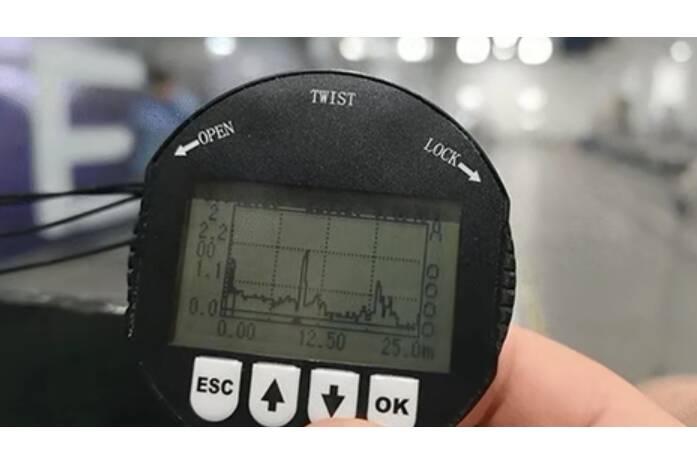

- Baseline Measurement: Aligned the radar with the metal box. The device displayed a stable distance of 9.68 meters.

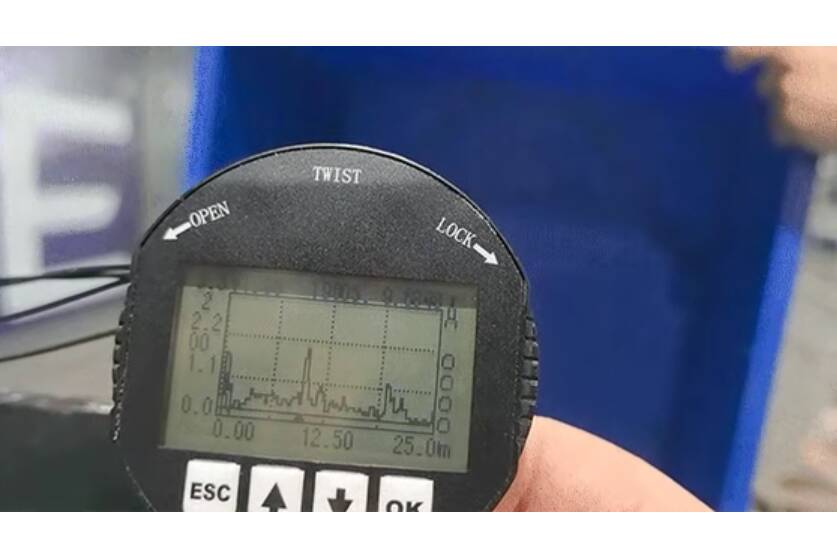

- Single-Layer Obstruction: The operator placed the blue plastic box between the radar antenna and the metal box, with the thickness of the obstruction being approximately 1 cm. The signal penetrated the plastic and still displayed 9.68 meters.
- Double-Layer Obstruction: The operator placed the plastic box upright to form a double-layer shield. Despite the increased density and thickness, the radar reading remained stable at 9.68 meters with no signal loss or jumping.
The test proved that the 80GHz radar maintains high precision even in extreme conditions. The measurement remained consistent regardless of whether there was no obstruction, a single layer, or double layers of interference.
Why the Engineering Solution Works: 80GHz Technology
Traditional lower-frequency radar often struggles in these conditions due to wide beam angles. A wide beam hits vessel walls and internal obstructions, creating false echoes that confuse the system. Furthermore, lower frequencies have less energy density, making them more susceptible to scattering by heavy dust clouds or dense steam.

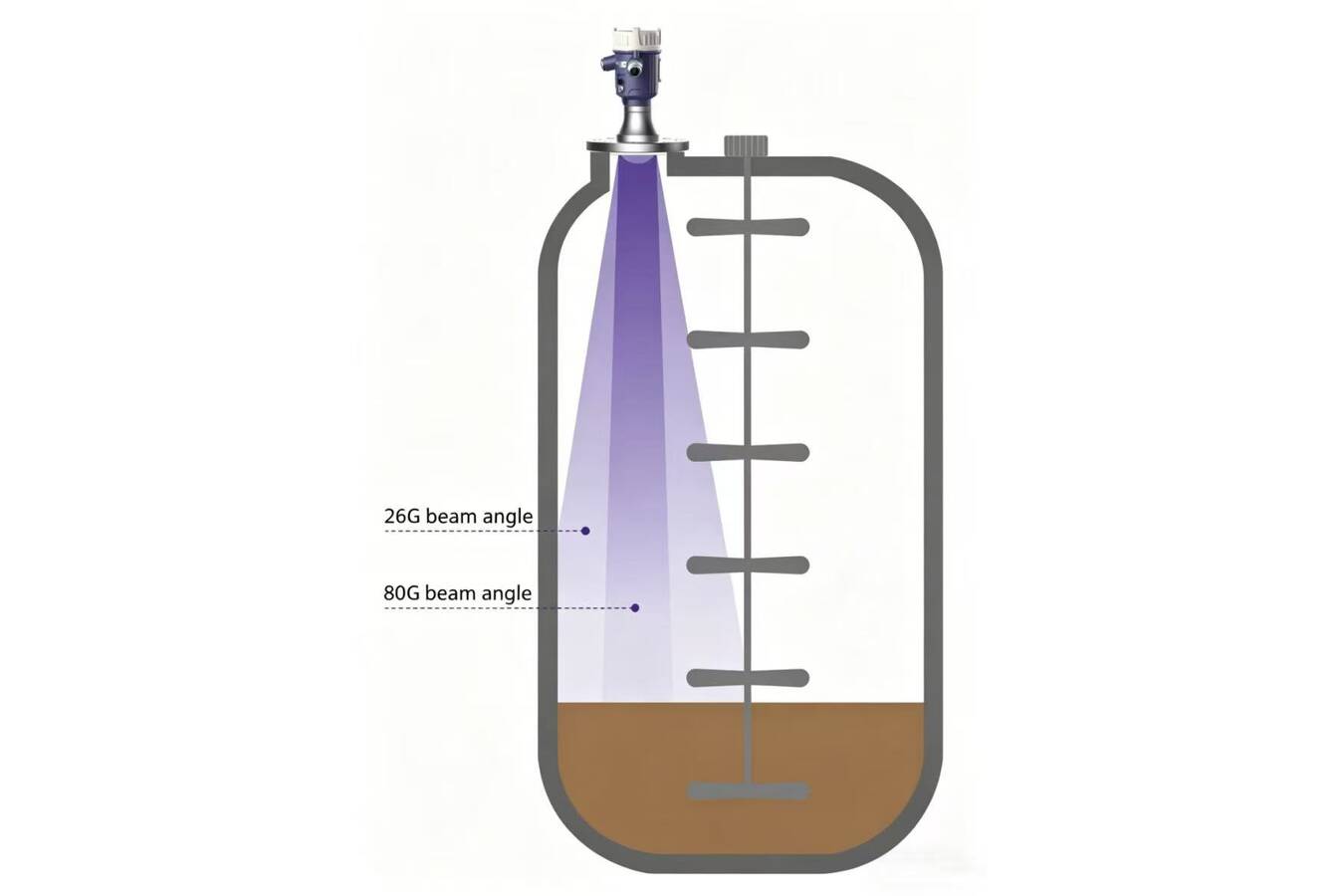

To address this, RETTAR utilizes 80GHz Radar Level Meter. This technology provides two critical advantages: a narrow 3° beam angle that focuses energy away from walls, and high-frequency wavelengths that cut through dust and steam with higher resolution.
- Hardware Integrity: Antenna and Diagnostics
To ensure high signal sensitivity in harsh environments, we have refined the hardware architecture:
- Optimized Signal Path: The radar utilizes high-frequency PP/PTFE antenna material. This choice of material minimizes signal transmission loss and significantly improves the efficiency of signal reception, ensuring that even weak echoes from the material surface are captured clearly.
- Preventive Maintenance: Modern maintenance requires more than just measurement; it requires predictability. Our 80GHz Radar Level Meter includes a built-in self-diagnosis module. This module monitors the equipment’s internal health in real-time. If the device detects a potential issue, it pushes a pre-warning notification via a dedicated App, allowing the maintenance team to intervene before a failure occurs.
Operational Value: From Safety to Efficiency
This engineering approach translates into direct benefits for plant operations:
- Enhanced Safety through Accuracy: By penetrating dust and steam interference, the sensor provides reliable, real-time feedback on material levels. This eliminates false positives and prevents dangerous scenarios such as empty silo operations or tank overflows.
- Reduced Operational Costs: The system is designed to be largely maintenance-free. Because the radar effectively ignores internal interference and minor buildup, it reduces the need for manual tank cleaning and unplanned downtime. In many applications, this can reduce total maintenance costs by 50% or more.

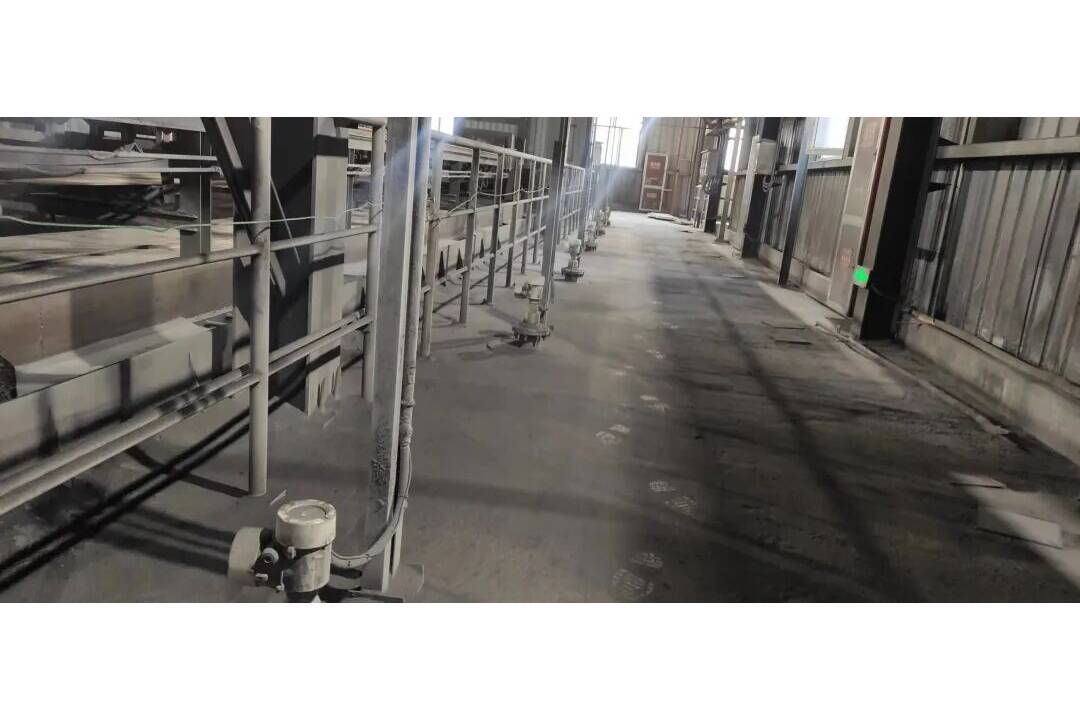

- Broad Application: Whether in mining, metallurgy, or other high-dust/high-humidity environments, this radar ensures the stability of your process control, allowing operations to continue without frequent manual intervention.
By focusing on signal physics—high frequency, optimized materials, and predictive diagnostics—we provide a pragmatic solution to industrial level measurement. It is not just about the measurement itself, but about ensuring that your process control remains stable, safe, and cost-effective.
