Managing a household pantry is simple, one glance tells you when to restock. However, for industrial silos holding thousands of tons of sorghum, managers often face the dilemma of ”having grain in storage but no data in hand.” These silos, standing dozens of meters high, make it nearly impossible to gauge actual inventory. Relying on estimates is inaccurate, and sending personnel inside is a major safety liability.
BEIJING RETTAR TECHNOLOGY CO., LTD. has introduced a revolutionary solution to this long-standing industry challenge. The 3DPro2300 Radar Scanner acts as both ”eyes” and a ”brain” for silos, providing real-time, precise, and safe insights into material volume without ever opening the hatch or stopping production.
Core Challenges in Sorghum Silo Management
In the brewing, feed processing, and bulk grain storage sectors, precise inventory directly impacts cost control and audit accuracy. Traditional methods struggle with:
- Significant Safety Risks: Manual entry for auditing carries fatal risks of dust explosions, oxygen deprivation, grain entrapment, and falls.
- Operational Downtime: Audits often require stopping production, which hinders logistics and reduces turnover efficiency.
- Harsh Environments: Heavy dust inside silos often blinds traditional optical equipment, leading to signal loss and data distortion.
Technical Solution: From Points to 3D Digital Twins
The 3DPro2300 Radar Scanner transitions from ”single-point detection” to ”full panoramic 3D modeling” by combining advanced radar with a robotic motion platform.
- 140GHz Signal Integrity: Using high-frequency FMCW radar, the device penetrates thick dust and smoke. It measures thousands of points across the material surface with high resolution, unaffected by lighting or humidity.

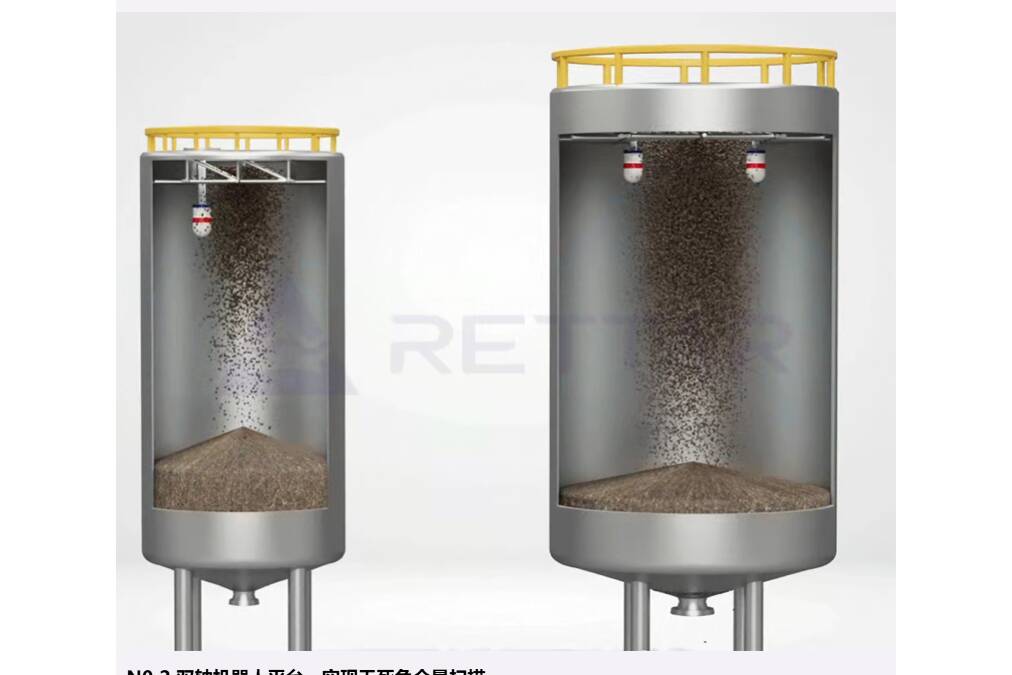

- Dual-Axis Robotic Platform: An integrated servo system drives the sensor to rotate 360° horizontally and swing ±90° vertically. In one cycle, it captures 16,200 independent points, eliminating blind spots regardless of the material’s shape.

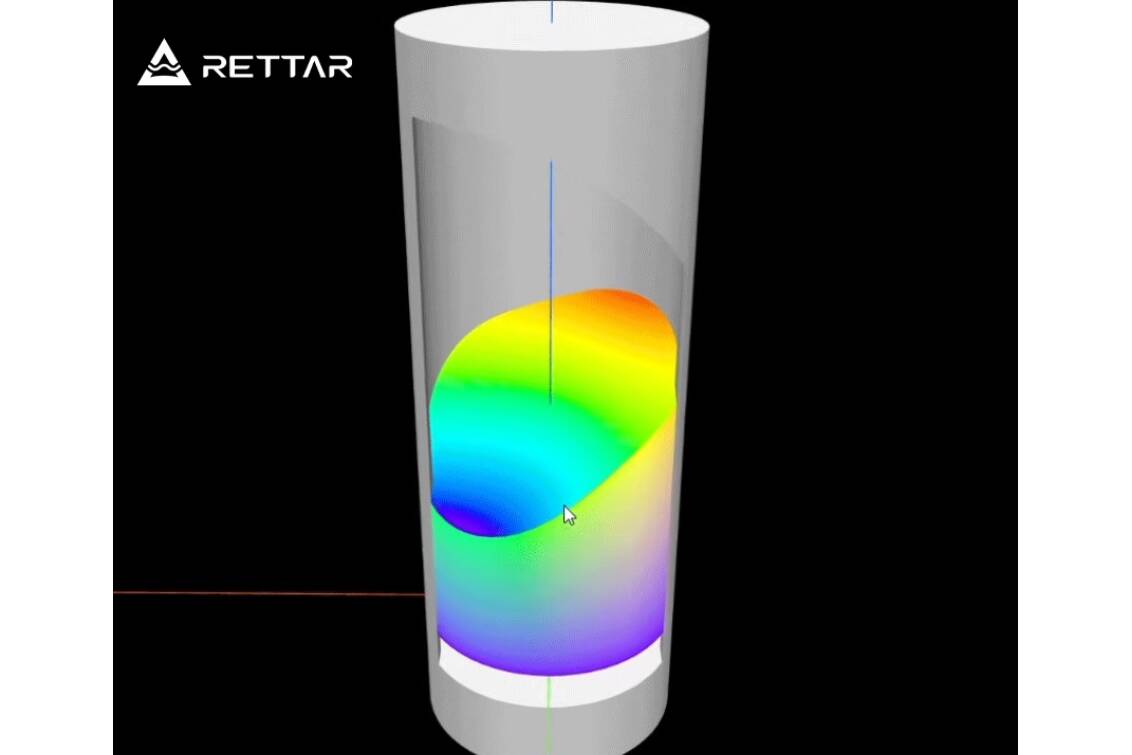

- AI-Driven Modeling: Massive point cloud data is processed via RETTAR’s proprietary algorithms to generate a high-fidelity 3D model. This system calculates real-time volume, level height, and surface area with precision.
Delivering Multi-Dimensional Value
1. Unmanned Safety (ESG)
By enabling ”Zero-Climb” auditing, the system removes personnel from hazardous environments. This shifts safety management from ”protective gear” to ”risk elimination” through technology.
2. Economic Transparency
- High Precision: With volume accuracy up to ±0.5% FS, the system minimizes measurement errors, providing a reliable foundation for financial audits and trade settlements.
- Efficiency Gains: Synchronized inventory checks during production eliminate the need for shutdowns, significantly increasing warehouse turnover.
3. Data-Driven Management
- Real-Time Visualization: Managers can view 3D inventory status and historical curves from a central control room, gaining a ”total view” of the facility.
- Seamless Integration: Data integrates via Ethernet, RS485, or 4-20mA into existing ERP and WMS systems. This automates restocking triggers, production scheduling, and inventory alerts to prevent overflows or stockouts.
